AIS systems use VHF radio signals to transfer data between ships (or a ship and shore). The AIS antenna serves as the connection between your AIS transponder and external communication. A good antenna makes it easy for you to transmit and receive signalsVHF at about 161-162 MHz, which is the frequency used for AIS globally.
The right antenna amplifies your ability to see others and be seen, while a poor match might limit your system’s range or cause communication dropouts. Especially in crowded waterways or bad weather, having a steady AIS connection can make all the difference in collision avoidance and situational awareness.
Each antenna is different in design, size, and material, which will affect its durability, sensitivity, and installation complexity. Knowing these things will help you relate the antenna to your vessel’s size, operating area, and budget.
Types of AIS Antennas
Whip antennas are made up of thin, long rods constructed from stainless steel or fiberglass, resulting in a very lightweight design. On small and medium-sized vessels, they are very commonly installed for ease of installation and maintenance. All-around good performance and reasonable range are other common benefits. One outstanding benefit is their simplicity – these antennas most often screw directly onto the boat or a mount, requiring very little setup. Whip antennas typically provide an omnidirectional reception, allowing them to receive signals uniformly from every direction. This is ideal for vessels moving in various directions relative to other ships. Whip antennas can be tall and may not suit boats with low clearance or those that want a flush, sleek profile. They can be vulnerable to damage from harsh weather or impacts, so consider durable materials and proper mounting.

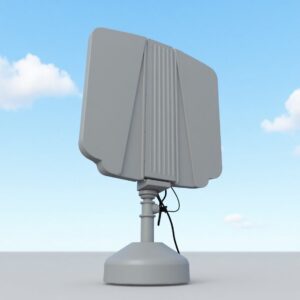

Panel antennas come in flat, rectangular shapes and are often used on vessels that want a low-profile, flush-mount setup. These antennas are more compact and have an attractive, unobtrusive design, perfect for sailboats or other small crafts where space is tight. A panel antenna’s performance is usually solid within line-of-sight ranges but may have a more limited range compared to whip models. They work best when mounted high without obstructions, as nearby structures or rigging could interfere with signals. Because of their directional characteristics, these antennas tend to pick up signals better from certain angles. For AIS purposes, many panel antennas are designed to have a broad enough coverage to be effective all around, but it’s good to check specifications related to gain and radiation pattern before purchase.
Some antennas combine AIS with other communication bands like VHF radio or GPS. These multiband antennas offer convenience by consolidating multiple antenna functions into one device and reducing cable runs. While these are space-saving solutions, they might not always deliver the same range or clarity as dedicated AIS antennas. Interference between bands can occasionally affect performance, so selection should focus on proven products from reputable manufacturers. Combination antennas are popular on vessels with limited mounting spots or those seeking a clean, uncluttered deck. They often require professional installation and tuning to maximize performance.
Matching Antennas to Vessel Types
If you own a small powerboat, fishing vessel, or day sailer, your AIS setup will likely focus on local coastal navigation and spotting other boats nearby. For these boats, a simple, robust whip antenna is often the best fit. Whip antennas on small boats are cost-effective and provide reliable, omnidirectional coverage without complex mounting. Since your range requirements are moderate and exposure time is limited, a standard commercial whip antenna around 3 to 5 feet in length is usually sufficient. If aesthetics or height limitations matter, a low-profile panel antenna can work, but expect a slightly shorter reception range. Ensure the antenna is installed at the utmost height, free from obstructions like the cabin roof, to improve line-of-sight.
Sailboats often have tall masts, which can serve as excellent mounting points for AIS antennas. Mounting a whip antenna on the mast can be difficult because of the rigging and the requirement to keep unobstructed signal pathways. For these vessels, compact panel antennas or specialized masthead AIS antennas that clamp directly to the mast are popular options. These antennas fit snugly without interfering with sails or gear and provide balanced coverage all around. Because mast height enhances signal range, the antenna choice focuses more on durability and ease of maintenance. Marine-grade materials that resist corrosion and vibrations are essential to prevent signal loss over time.
Commercial ships, tugs, ferries, and fishing fleets generally require AIS antennas with extensive range and rugged construction. Many opt for high-quality, heavy-duty whip antennas designed to withstand constant exposure to saltwater, spray, and physical impacts. Larger commercial vessels may use multiple AIS antennas or combine the AIS feed with existing VHF communications antennas to ensure maximum coverage. These antennas often come with higher gain and better noise rejection features, boosting their ability to identify distant targets, essential for open water navigation and port operations.
Offshore and Long-Range Vessels
For ocean-crossing vessels such as research ships, cargo carriers, or large yachts, an AIS antenna with superior performance is a necessity. Due to the vast distances involved, maximizing transmission and reception range improves safety and tracking accuracy.
In these cases, tall, high-gain whip antennas securely mounted on towers or the ship’s superstructure are preferred. Some operators may install dual antennas to cover blind spots and provide redundancy.
Materials, build quality, and proper grounding become critical here, as the antenna system must withstand harsh offshore conditions for long periods with minimal maintenance.
Key Technical Considerations in AIS Antenna Selection
AIS operates on a specific pair of marine VHF channels (around 161.975 MHz and 162.025 MHz). Ensure the antenna supports this frequency range precisely for optimal transmission and reception. Using antennas designed for different bands may reduce range or cause signal distortion. Manufacturers usually specify the frequency range or bandwidth of the antenna. Look for products labeled as “marine VHF AIS” or similar. Avoid cheap generic antennas that don’t state compatibility.
Antenna gain indicates how effectively the antenna focuses radio energy in a particular direction. For AIS, a moderate-gain omnidirectional antenna is ideal because vessels move around and signals come from various directions. Generally, a gain of about 0 dBi to 3 dBi is common for AIS antennas. Very high-gain directional antennas are not practical for AIS because they require aiming and restrict the coverage angle, which could reduce safety. The radiation pattern should cover 360 degrees horizontally. Vertically, a narrower beam can help reduce noise and improve clarity. Check product specs or diagrams to verify the expected radiation pattern.
Height plays a crucial role in radio signal range, especially over water, where signals travel mostly in straight lines. Mounting your AIS antenna as high as possible helps overcome the Earth’s curvature and physical obstacles. Select mounting points that offer a clear line of sight free from metal obstructions, antennas, and rigging. Common spots include mastheads, radar towers, or dedicated poles. Keep in mind that cables add signal loss the farther the antenna is from the transceiver. Use quality coaxial cables and keep cable runs as short as possible.
Marine environments are harsh on gear. Saltwater, sun exposure, and mechanical vibrations demand robust construction. Look for antennas made of corrosion-resistant materials like stainless steel, fiberglass, or high-grade plastics. Waterproof seals and UV protection enhance longevity. Check the antenna’s wind and vibration ratings to confirm it can handle your operating conditions, especially on fast or offshore boats.
